WHAT IS THE FOLDING CONTAINER HOUSE

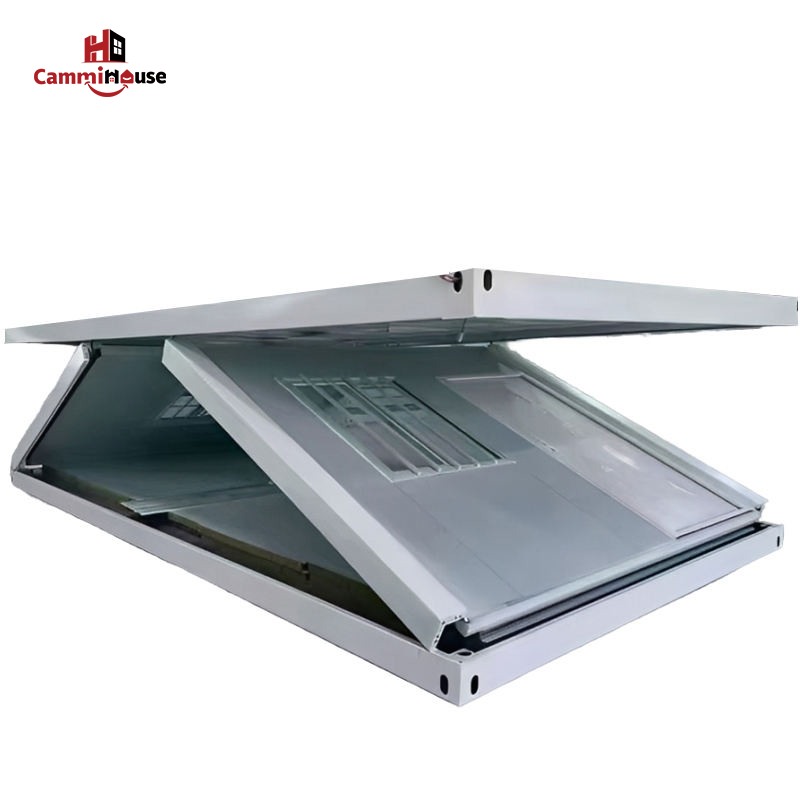

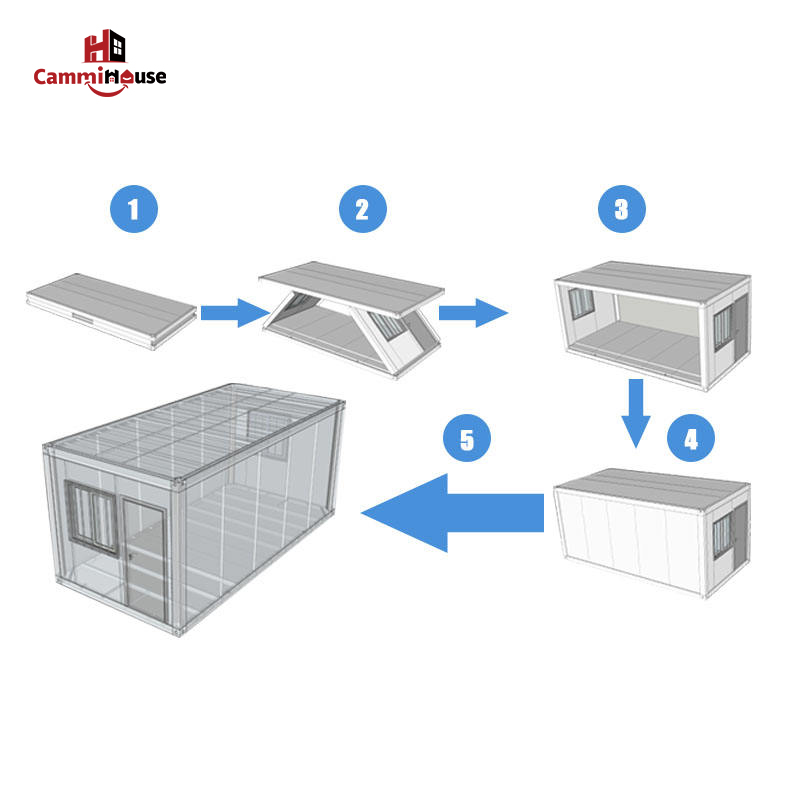

The Z fold container is a foldable modular space that can be easily fold anything for store and move and get stable after opening.

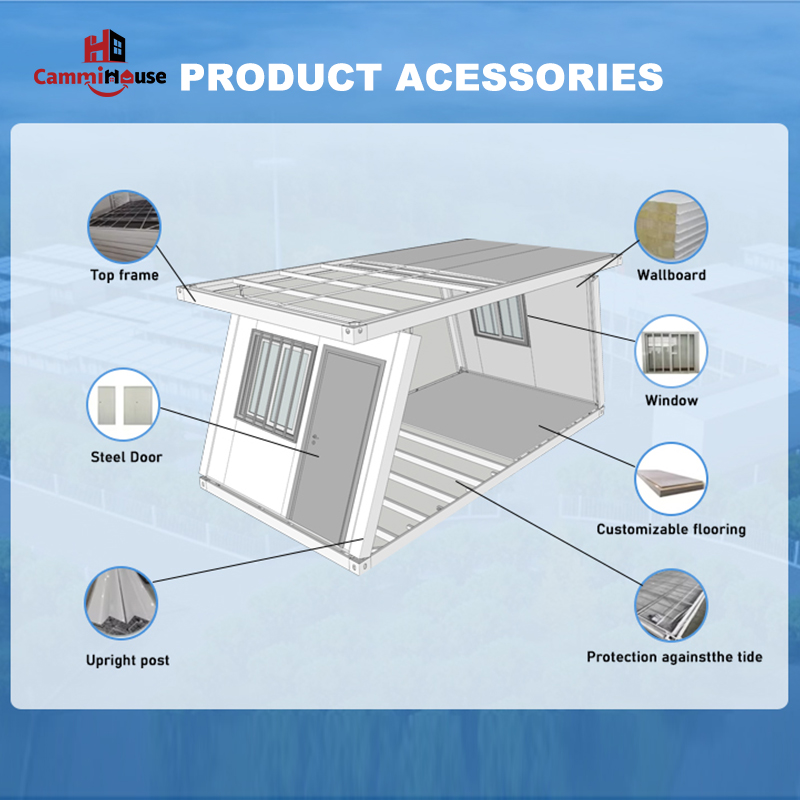

FOLDING CONTAINER HOUSE STRUCTURE
1.Frame: Galvanized steel, galvanized square tube
2.Wall panel: 50mm/75mm100mm rock wool panel
3.Roof: 75mm EPS color steel clean panel
4.Floor: 18mm cement fiberboard + 1.6mm PVC foor leather
5.WVindow: Plastic-steel anti-theft window
6.Door: High-grade steel door
Z Folding Container House
Size: 5900(L)mm2500(w)mm2470(H)mm
Service life: 20 years
Stacked layers: ≤3
Step 1:Clarify Material Access Standards (Source Control)
Create a "qualification review + sampling re-inspection" mechanism. Establish quantitive standards for key materials like Q355B steel (press strength ≥ 355MPa), EPS heat insulation material (heat conductivity ≤ 0.042W/(m·K)), and door locks (tensile strength ≥ 1000N) to control source quality.
Step 2:Steel Cutting and Blanking
Use CNC plasma cutting. Make sure the size difference is no more than ±1mm, the edge cuts at right angle 0.5mm/m or less, and no sharp edges or missing points. Perform 100 manual checks on the looks of the cutting edges.
Step 3:Frame Welding
Provide adopt of CO₂ gas shielded weldings (current: (120-180)A, Voltage: 20-25)V). Make sure that the weld height is more than 6 mm and that no weld defect exists. 100% ultrasonic flaw detection shall be done on main frame welds. Re-weld all welds, which have failed the inspection, and perform re-inspection.
Step 4:Frame Straightening and Forming
Once it is straightened, the deviation along di- agonal shall not be more than3mm,the perpendicularity of the columns not more than2mm/m,and the flatness of the beam not more than1mm/m. 100%along with magnetic powder test shall be con- ducted on key parts to confirm no cracks and deformation.
Step 5:Enclosure System Installation (Core of Thermal Insulation and Waterproofing)
Use 1.8mm magnesium oxide boards for the ground, weld strain ≤200mm length and no hollow. The splicing gap of EPS thermal insulation plate install ≤2mm. Overlapped sew of exterior wall color steel plate ≥100mm, the roof slope ≥5°, 24h water tightness test is conducted to avoid leakage.
Step 6:Supporting System Installation (Doors, Windows, Water and Electricity)
Make sure doors and windows are air tight enough (air leakage ≤ 0.1m³/(h·㎡) under 0.5kPa). Use glass thicker than 5mm. Use BV (copper core, sealed high). Use Power and PPR pipes for water and power districts. Do a water pressure test for a half-hour at 0.8 MPa with a drop of 0.05 MPa. Let the power on test run all through.
Step 7:Factory Acceptance and Filing (Inspection Closure)
Follow three-inspection system (self, mutual and special inspection). Bind sticker on the qualifications of cabins, take photographs for records. Kill unqualified products and rework them. Keep all the records for over 3 years.
Step 8:Delivery Acceptance Coordination
Customers are taken by quality controllers for acceptance. Sign the confirmation if you have no objection. Make a bill on what to change within 24 hours if there is a problem, and take another look after change.
Step 9:Quality Tracking and Feedback
Create only high quality records and follow-up as you follow the "1 month return, 3 month review, and 1 year maintenance" plan. Resolve issues faced by client as fast as within 48 hours and solve them within the next 72 hours. Reach the location within 24 hours for urgent cases.
Cammi House was set up at high tech 9000 sq Carey meter factory. The lines here are techno assisted. It is world's largest maker of both container and capsule houses for its size. Thanks to first rate technologies and lean manufacturing, it is able to produce quite high class machinerie compared to companies of similar size. To this company, this present hands an unfair advantage in all points regarding the contentment of its requirements or related concerns. |
| ✔ Flexible Delivery Time | ✔ Low MOQ | ✔ Exclusive Regional Rights & Pricing Support |
| Delivery times that stay the same and storage help. | Mixtue of goods with bendable MOQ | Brand Permission Aid You Stay On top of Others in the Market |
| ✔ High Cost-Effectiveness | ✔ Custom Logo | ✔ R&D Resources |
Getting full value of the deal at the best prices. | Unique Logo For Small Set of Products First Name | Provide you with 3D sample images and floor plans within 7 days |
| ✔ Wide Product Selection | ✔ One-Stop Marketing Package | ✔ 15 Days Fast Delivery |
| Different ways to suit each market option | Supply high standard pictures, films for selling more money | Fastest Only in 15 days production and Sending Out. |
Products go through many technical tests and certifications like CE, FCC, ETL, ISO 9001 and Energy Star every year as per customer demands to meet the norms for safety, quality and efficiency around the world.
130+
Certifed Patent
Think about patent cover for each of the tech to have a lawful cover and will not lose work on the market.
3000+
Project Cases
Honed through over 3,000 projects, strength has forged a model of efficiency in container housing
10%
New R&D Expenses
Every year, 10% of the earnings go into making the products better.
100+
Technical Team
Qualified technical team means both good quality and great service.
Commercial Use
Motel& Resort
Mining Camp
Construction Camp
Cheers to Cammi for thinking of these nation’s best camp ideas, from steel buildings to the furniture in our landscape capsule project in USA. We thank what they’ve done for us and are excited to work with them again on new projects.
Cammi was our trusted supplier for the Space Capsule Thailand project. We have three times be on the same page under pressure. Nice to work with a friendly and knowledgeable group! I highly recommend Cammi if you are looking for great prefab homes.
Our space pod project in Rheinl and Bay was designed, built, and observed by Cammi. The entire project was strutted from our very small budget and it was on time. Our space pod has been in use for two years. The system of erasing rust and water flowing is very good. We couldn't be gladder about how good the box was.
Q: What kinds of products can you offer?
A: We have many different houses such as K House, T Distance House, Villa, mobile houses, light steel structure main buildings, guarded housing etc.
Q: What are your house materials?
A: Main ones are sqare tube, "c" shape steel, "H" shape steel and steep steel. The wall and roof wall matirial are waterpro EPS panel ; fireprof frock wol panel ; Welinsulated PU panel ; Strong concrete panel, these four will last more than thirty years.
Q: Are you the factory or the trading company ?
A: Of course, indeed, we are a factory and we can give you a great price.
Q: Did you have the experience to cooperate with the government?
A: Sure, we experienced working with the government many times. We worked with the Maldivian Government, Indian Government, Indonesian Government, Timor Timor Government, Philippine Government, Pakistani government and many more.
Q: How is your after-sales service?
A: 1. Any question,plesae do not hestitate and you can contact us.Feely use 24 hours for you.
2. One order,only one person who can follow your order.
3. For house installation, we will supply you the 3D instal drawing.If you need, we will send you the enginer to teach your workers but You must pay all the returnticketaccommo- dation, food and salary.
Q: What information should we offer before you quote ?
A: If you attain the drawing, kindly provide us with the material you use and do so. If the drawing is not with you, put us through the size of the house. Then we design for you at a nice cost. Any question, do not think twice before call us !!
Internet-famous Box
Double-opening Z case
Expansion Box
Packing Box
Mesaieed Industrial City 10,000-Man Workers Camp
August 1,2025/ August 20.2025
Cammi ran life support camp for 10,000-capacity plant and liquid/oil storage at Qatalum to work for.
November 18,2025/ November 25.2025
Any ready and cutting Cammi finished the job on 26,000 work men city project.
Mobile Medical Hospital and First AidStations
December 1,2025/ December 3.2025
British residents can enjoy Cammi's health clinics in just 120 minutes as they have been made readily accessible through extensive research and development.
Product Highlights 1. Foldable 20ft Design – Foldable makes it easy to move and curtails shipping budget. 2. Modern Appearance – The new great look works for a wide range of jobs. 3. Strong Steel Structure – Lasts long, is steady, and can stand weather. 4. Fast Installation – The fold system lets you set up fast at your work site.
Product Highlights 1. Modular Folding Design – Simple travel, quick start-up, and flexible change of location. 2. Prefab Office Layout – effective working space for on-location or short-term offices. 3. Sturdy Steel Structure – Heavy duty, secure, and designed for everyday use. 4. Time-Saving Installation – Folding method cuts time and work needed for setting up.
Product Highlights 1. Latest Prefab Container House - Commercial quality with fresh look. 2. Container Structure on the Go - Lightweight, flexible to different walkways. 3. Container Homes for Sale - Customizable plans, sizes, inside options. 4. Quick Setup - Use of pre-made parts, load on time and cost of power.
