WHAT IS THE EXPANDABLE CONTAINER HOUSE
Mobile container room can be hand-fallen when needed to convert it from a single unit to triple one still is a container room.

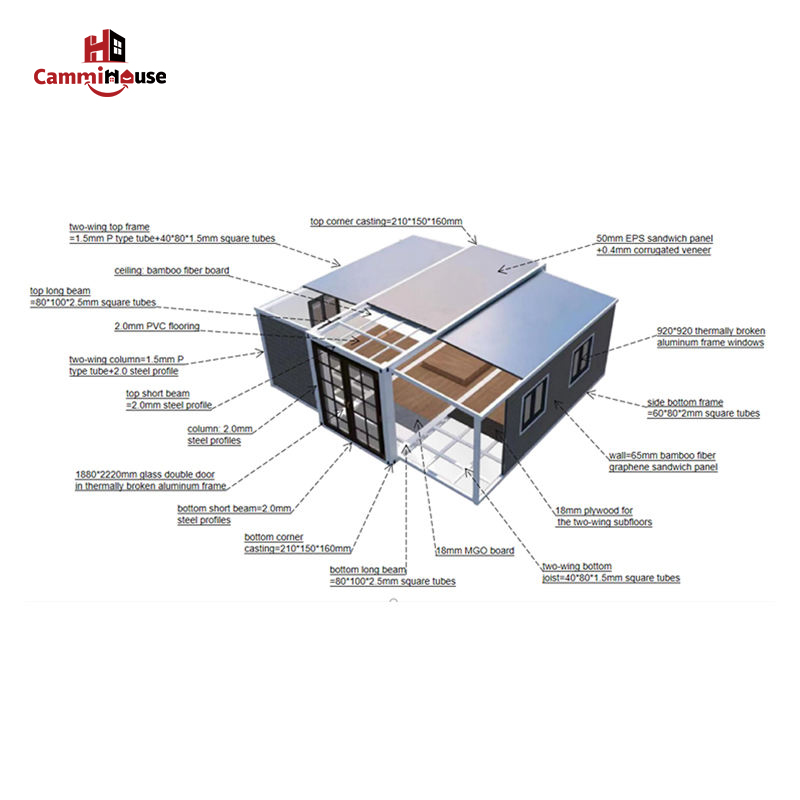

EXPANDABLE CONTAINER HOUSE STRUCTURE

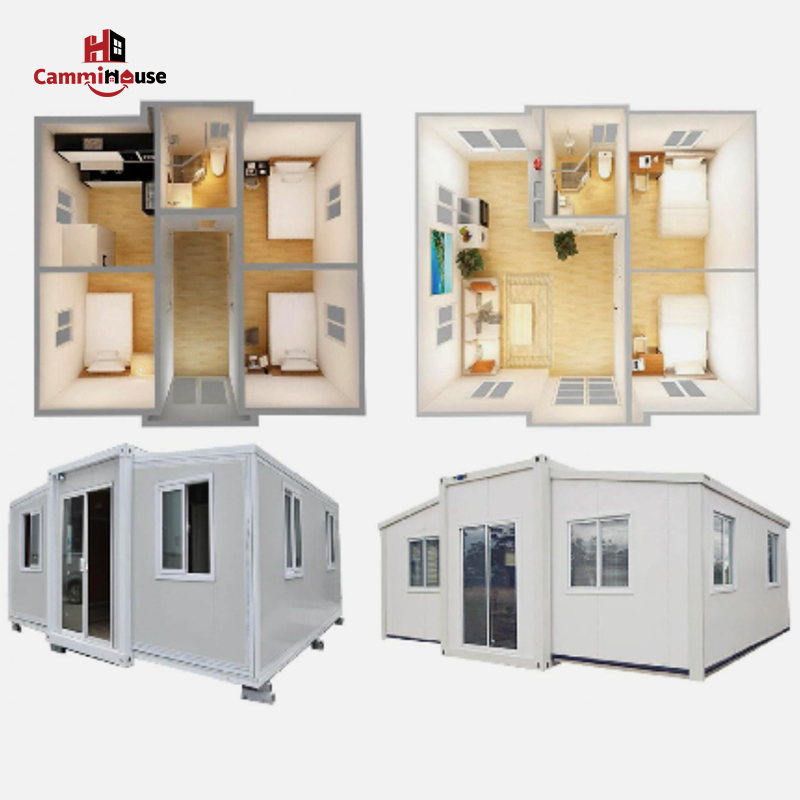

Extra large room of 27-72 sq meters, wind speed 12, jump height 9, can be stacked to 2 layers with 20-foot container for other sizes only 1 layer, against 120 times, very firms, options: 1 - bed-living room-kitchen-bath; 2 - bed-living room-kitchen-bath; 3 - bed-living room-kitchen-bath with bed.
 |  | ||
Small 20FT： Installed size:5900L*4800w*2480(H)mm Interior size: 5460L*4640W*2480(H)mm Folded size:5900L*700W*2480(H)mm Area: 27.5㎡ 40HQ=6 units | 20FT： Installed size: 5900L*6320W*2480(H)mm Folded size: 5900L*2200w*2480(H) mmArea:38㎡ 40HQ=2 units | ||
 |  | ||
30FT： Installed size: 9000L*6240W*2480(H)mm Folded size: 9000L*2200W*2480(H)mm Area:54㎡ 40HQ=1 units | 40FT： Installed size: 11800L*6240W*2480(H)mm Folded size:11800L*2200W*2480(H)mm Area:72㎡ 40HQ=1 units | ||
Step 1:Clarify Material Access Standards (Source Control)
Build a "second check of collection of 'screening + rice (samples)’" system. Use of a series of numbers on main material as Q355B steel (yield strength ≥ 355 Mpa), EPS heat coating (thermal conductivity ≥ 0.042 W/(m·K)), and opening locks (breakaway strength ≥ 1000 N) does serve to check source standard.
Step 2:Steel Cutting and Blanking
Use CNC plasma cut. Certify the Dimensional difference of cutting edge is not more than ±1mm, the rectangle of the cut edge is not more than 0.5mm/m, no burr and missing the corner. Do the 100% on the cutting edge appearance.
Step 3:Frame Welding
Adopt CO₂ gas shielded welding (current: 120-180A, voltage: 20-25V). Make weld height ≥ 6mm and good in quality. Conduct 100% ultrasonic flaw detection on main frame welds. Rework all unqualified welds and re-inspect.
Step 4:Frame Straightening and Forming
If the straightness is under, the skewness is not over 3cm, the column is not over 2mm/m, the flatness is under 1mm/m, then do thorough inspection and magnetic component inspection on important parts and check cracks or deformation 100%.
Step 5:Enclosure System Installation (Core of Thermal Insulation and Waterproofing)
Use 1.8mm magnesium oxide boards for the floor with weld spacing ≤ 200mm and no hollowing. Followed by the splicing gap of EPS thermal insulation boards ≤ 2mm. Finally, the over lap of external wall color steel plates ≥ 100mm, the roof slope ≥ 5°, and 24 hour water tightness test in order to avoid leakage.
Step 6:Supporting System Installation (Doors, Windows, Water and Electricity)
Ensure the doors and windows of airtightness follow the GB/T7144-2014 standard (air leakage ≤ 0.1m3 / (h · ㎡) in 0.5kPa). Insulation glass of ≥ 5mm thick shall be used. Use BV copper core wire and PPR pipe on water and electricity system. Conduct a water pipe pressure test (0.8MPa, 30 min) after the rough reduction of 0.05MPa. The pass power-on test shall be 100% of the total test.
Step 7:Factory Acceptance and Filing (Inspection Closure)
Implement three types of inspection systems (self-inspection, mutual inspection, special inspection). Put tags on the qualified cabins and take pictures for the record. Keep the unqualified products apart, fix them, and keep all the records for more than 3 years.
Step 8:Delivery Acceptance Coordination
Quality control people will be with customers to receive the checks. Sign if you have no worry. Correct it in 24 hours if there is a problem and we will check after correcting.
Step 9:Quality Tracking and Feedback
Adhere to “1-month return visit, 3-month check-up, 1-year maintenance” plan by preparing unique quality documents and following-up accordingly. Must react to problems from clients in 48 hrs and send rectification within72hrs .Also, Respond to emergency problems within24 hours onsite.
Cammi House has a hi-tech 90000 square meters plant and has facilities that are fully automated. This is, to date, the biggest manufacturing centre for containers and swift dwelling capsules on earth. It is simply the best with regard to the most modern tech used, as well as having easy systems that make it possible for us to make good items with a high level of productivity. Our commitment to great quality is creating standards not only for development, but also for a cool, environmentally conscious, quicker way of making the parts that come together to make a swift house. |
| ✔ Flexible Delivery Time | ✔ Low MOQ | ✔ Exclusive Regional Rights & Pricing Support |
| Help deliver products at the right time and keep them well | Unfirm MOQ with mixed product options | Brand Authorization puts you in a better place in the market |
| ✔ High Cost-Effectiveness | ✔ Custom Logo | ✔ R&D Resources |
| Comparison prices to get the most out of it. | Customized logo Small batch customization | Make 3D Sample Images and Floor Plans in 7 Days |
| ✔ Wide Product Selection | ✔ One-Stop Marketing Package | ✔ 15 Days Fast Delivery |
| Different choices for each part of the market. | Provide Better artwork, Films To Grow Cash From Sales | Produce and ship fast, within 15 days, at top speed. |
Every year them are tested and go through many technical approval certifications such as CE FCC ETL.IS0 9001. and Eneray Star as required by the client and all meet international safety, quality and efficiency norms.
130+
Certifed Patent
Think about Patent covers for every technology to restrict law rights and the drogy market.
3000+
Project Cases
Honed through more than 3000 projects, strength developed a way to quickly house containers.
10%
New R&D Expenses
Every year, 10% of all benefits made go to focus on bettering products further.
100+
Technical Team
Experts have our back so quality and service are sure thing.
Commercial Use
Motel& Resort
Mining Camp
Construction Camp
Thank you to Cammi for the great camp solutions scaffold, scale house, small lab, and load objects for the dataset capsule work at the national in the US of A. We are happy with the speed and how well they work. We are looking forward to using on our next jobs.
Cammi is our great supplier for the Space Capsule Thailand work. We have done business together three times in a row. I love their nice but still business like group! I recommend Cammi's work to anyone who wants high quality made building.
Our space pod project has been made, designed and observed by Cammi in Rheinland and Bay. The whole project board met our cheap budget and was delivered on time. The space pod has been used for two years. The corrosion prevention drainage system is best. We are very happy of the quality of the container.
Q: What kinds of products can you offer?
A: We have a bunch of houses, such as prefabricated K house, prefabricated T houses, vila, mobile containers, light steel structure buildings, guard and so on.
Q: What are your house materials?
A: Mainstel structures are square tube,"c" section stel,"H" section stel, angle steel. Wall and Roof materials are waterpro EPS panel; fireprof frock wol panel; Welinsulated PU panel; Strong concrete panel. These materials can be used for more than 30 years.
Q: Are you the factory or the trading company ?
A: Yes, we are a factory and we are able to give you a good price.
Q: Did you have the experience to cooperate with the government?
A: Sure,there are many times that we have work with government. We have work with governments of some countries such us the government of memories,armersh,Indonesia,Tamahad,break out, Paks, among hour things.
Q: How is your after-sales service?
A:
1. If you have any question, just call us. We are here for you 24 hours.
2. Every order will get one person to follow the whole production from out to end.
3. We will send to you the 3D eenrrgy install drawing for house install. If you need, we can send engine to teach your worker, but you should pay his back ticket, accommodation, food and salary.
Q: What information should we offer before you quote ?
A: If have drawing, please give us and say what you use.If you don have drawing, tell us how big house is. After we made design for you at good price. If you have any question, no trouble to contact us !!
Internet-famous Box
Double-opening Z case
Expansion Box
Packing Box
Mesaieed Industrial City 10,000-Man Workers Camp
August 1,2025/ August 20.2025
Cammi built a life support camp that could house 10,000 people at Qatalum's carbon plant port and storage facilities( workers and managers).
November 18,2025/ November 25.2025
Cammi finished the 26,000-worker people city work in a full project way.
Mobile Medical Hospital and First AidStations
December 1,2025/ December 3.2025
Cammi joined mobile field hospitals when they are the result of heavy R&D studies and can be acted on within 2 hours.
Product Highlights 1. Portable unit House Style - has more space to get in on site. 2. Mobile expandable Prefab Home - Portable house can be taken anywhere. 3. Factory Developed Expandable Shipping Container Home – Built and shipped from the factory. 4. Fast set up – Prefabs cut down on set up time and labor.
Product Highlights 1. Expandable Container Homes - Expandable design creates more space where you are. 2. Modular Container House System - Flexible ones for easy lay out changes. 3. Modern Container Homes Style - Clean, sleek look for modern living. 4. Fast Prefab Installation - Saves time and worker costs.
Product Highlights 1. Outdoor Prefab House Design – Ready for outdoor use using durable stuff. 2. Expandable Container Structure – Grows where you put it for more room. 3. 3 in 1 Expandable Container House – Small to move, big to use. 4. Container Storage Solution – Perfect to keep things secure and for many uses.
