WHAT IS THE FOLDING CONTAINER HOUSE
A single X fold container is a set of small mobile structures. These structures can fold efficiently and store well. They also have stable supportive structures. These structures are adaptable to work in many ways.
FOLDING CONTAINER HOUSE STRUCTURE
Built with strong-galvanized steel and insulated Eps Panels, it can provide temporary or semi Stage space, like a 20' Standard container, 14 sq. Meter Area, Single door, 2 side windows, 12 units load at a time when shipped by 40' HQ container, improving fast turnover by 80% and saving money.

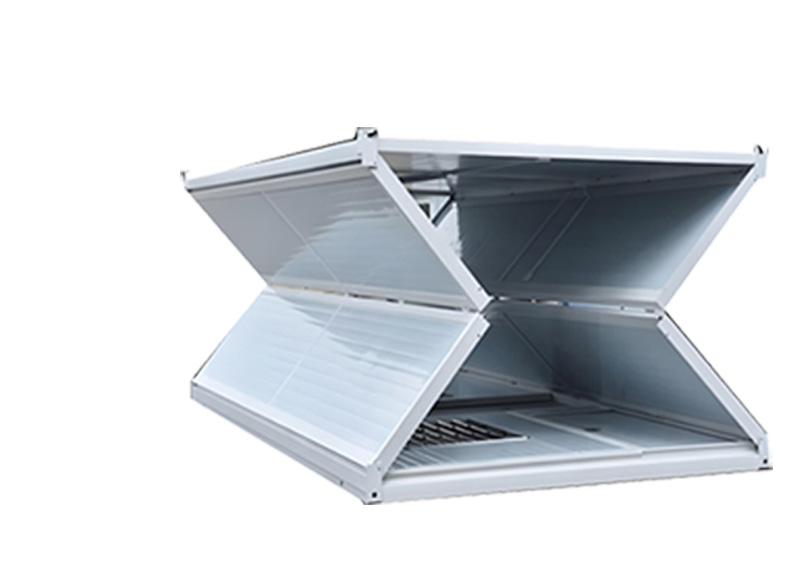

X Folding Container House
Size: 5800(L)mm * 2480(W)mm * 2560(H)mm
Weight:1400kg
40HQ=10 units
Step 1:Clarify Material Access Standards (Source Control)
Establish a "qualification review + sampling re-inspection" mechanism. Set quantitative indicators for key materials such as Q355B steel (yield strength ≥ 355MPa), EPS thermal insulation material (thermal conductivity ≤ 0.042W/(m·K)), and door locks (tensile resistance ≥ 1000N) to control source quality.
Step 2:Steel Cutting and Blanking
Use CNC plasma cutting. Dimensional error must be less than or equal to ± 1mm, the cut edge must be within 0.5mm/m of right angle, there shall be no burrs, no missing corners. Perform 100% visual check on the cut edge.
Step 3:Frame Welding
Replaced CO₂ gas shielded welding (current: 120-180A; voltage: 20-25V). Provided weld height ≥ 6mm and free from faults. Performed 100% ultrasonic flaw detection on follow main frame welds. Reworked unacceptable welds and performed inspection.
Step 4:Frame Straightening and Forming
Ensure that the diagonal deviate not more than 3mm, the column wave not more than 2 mm/ m, the beam flatness not more than 1 mm/ m after straight up. Conduct the 100% inspection, the magnetic dot test to the key parts, make sure that no crack and the deformation is exist.
Step 5:Enclosure System Installation (Core of Thermal Insulation and Waterproofing)
Use 1.8mm magnesium oxide boards for the floor with weld spacing ≤ 200mm and no hollowing. Make sure the splicing gap of EPS thermal insulation boards ≤ 2mm. The overlap of external wall color steel plates ≥ 100mm, the roof slope ≥ 5°, and carry out 24 hours water tightness test to avoid leakage.
Step 6:Supporting System Installation (Doors, Windows, Water and Electricity)
Make sure the doors and window air tightness is up to standard (air leakage ≤ 0.1m³/(h·㎡) under 0.5kPa). Use tempered glass with thickness ≥ 5mm. Use BV copper core wires and PPR pipes for water and electricity system. Conduct a water pressure test at 0.8MPa for 30 minutes with pressure drop ≤ 0.05MPa. Make sure you have 100% pass on power-on test.
Step 7:Factory Acceptance and Filing (Inspection Closure)
Do the three-inspection system (self-inspection, mutual inspection, special inspection). Use label on the cabins qualified and take the photo on record. Remove and do work on unqualified products. Keep every record for more than 3 years.
Step 8:Delivery Acceptance Coordination
Customers are allowed to be with quality control people when the goods are checked for acceptability. When there is no problem, change the form of confirmation. When there is problem, repair within 24 hours and re-test after the repair.
Step 9:Quality Tracking and Feedback
Create only good quality files and follow-up per "1 month return visit, 3 months inspection, 1-year rectification" plan. Reply to clients' problems in 48 hours, and resolve it in 72 hours. Reach at site within 24 hours for emergency problems.
Cammi House is home to a state-of-the-art 90,000-squaremeter manufacturing facility,equipped with fully automated production lines . As the world's largest production base for containers and capsule houses, we leverage cutting-edge technology and streamlined processes to deliver top-quality products with remarkable efficiency.Our commitment to excellence sets the in dustry bench mark, driving innovation and sustainability in modular construction. |
| ✔ Flexible Delivery Time | ✔ Low MOQ | ✔ Exclusive Regional Rights & Pricing Support |
| Support in warehousing and delivery schedules that can be trusted | Any MOQ with blended product choices | Brand Authorization Gives an Edge over Competitors in the Market |
| ✔ High Cost-Effectiveness | ✔ Custom Logo | ✔ R&D Resources |
Pricing that leads to best value overall. | Personalized Logo Customization for Small Batches | Give 3D Sample Pictures and Floor Plans in 7 Days |
| ✔ Wide Product Selection | ✔ One-Stop Marketing Package | ✔ 15 Days Fast Delivery |
| Hundred of different choices for all parts of the market | Give good pictures, footages to make sale money get high | Fastest with Clearance of at most 15 days to Procure and Dispatch. |
Products undergo different technical certifications and testing like CE FCG ETL.IS0 9001. and Eneray Star each year based on customers needs and make sure to pass international standards of safety, quality and efficiency standards.
130+
Certifed Patent
Patent protection has to be received for each technology to give legal ban and control over the market.
3000+
Project Cases
Hone by completing over 3,000 projects, strength has made a better way to deliver containers.
10%
New R&D Expenses
Profits are though -out every year invested into better build of goods by ten Percent.
100+
Technical Team
A full team of experts means great quality and good service.
Commercial Use
Motel& Resort
Mining Camp
Construction Camp
We thank Cammi for the great camp solutions, the steel-structured factories, furniture and camp gear they furnished us with for our pace capsule project in the US. We are glad that we used them and happy with their work and success as we want to work with them again on our next trips.
Cammi is the trusted supplier of the Space Capsule Thailand project. We are working together for the third straight time. l like their friendly and efficient team of people! l will suggest Cammi to all those who want well finished prefabricated houses.
Cammi was responsible for lastspace pod in Rheinl and Bay: You design, produce and supervise the project with precision. The project was delivered on budget and on time. This space pod has been operating for two years now. The anti-corrosion drainage system works very well. We are totally satisfied with the quality of the container.
Q: What kinds of products can you offer?
A: We have a lot of houses to offer, such as our K house, T house, the vila, mobile containers, light steel structure in addition to all others.
Q: What are your house materials?
A: The main stel structures are square tube,"c" section stel,"H" section stel, angle steel. The walland roof materials are waterpro EPS panel; fireprof frock wol panel; Welinsulated PU panel; Strong concrete panel, These materials can eb used for more than 30 years.
Q: Are you the factory or the trading company ?
A:Yes, we are a factory and we will give you a fair price.
Q: Did you have the experience to cooperate with the government?
A: Well,we have many experiencesto cooperate with the government. We have cooperated with the Maldives Government,Inda Government,lndonesia Government,East TimolGovernment, Philippines Government,Pakistan Government and so on.
Q: How is your after-sales service?
A:
1. Anything you ask us are welcomed. It is fit for you if 24hours can be served for you.
2. Each order will be looked after by a special person through all the making.
3. For the house fixing, we shall give you the 3Ds fixing picture. If needed, we could send you a pro to train your peoples, but you need charged him your ticket return,place to sleep, eat and the cash.
Q: What information should we offer before you quote ?
A: Please give us the drawing and tell us what material substance you intend to use. If you haven’t got the drawing, let us know the size of the house and we shall design it at a good rate for you.If you need any help, please contact us !!
Internet-famous Box
Double-opening Z case
Expansion Box
Packing Box
Mesaieed Industrial City 10,000-Man Workers Camp
August 1,2025/ August 20.2025
Cammi ran life support camp for 10,000-capacity plant and liquid/oil storage at Qatalum to work for.
November 18,2025/ November 25.2025
Any ready and cutting Cammi finished the job on 26,000 work men city project.
Mobile Medical Hospital and First AidStations
December 1,2025/ December 3.2025
British residents can enjoy Cammi's health clinics in just 120 minutes as they have been made readily accessible through extensive research and development.

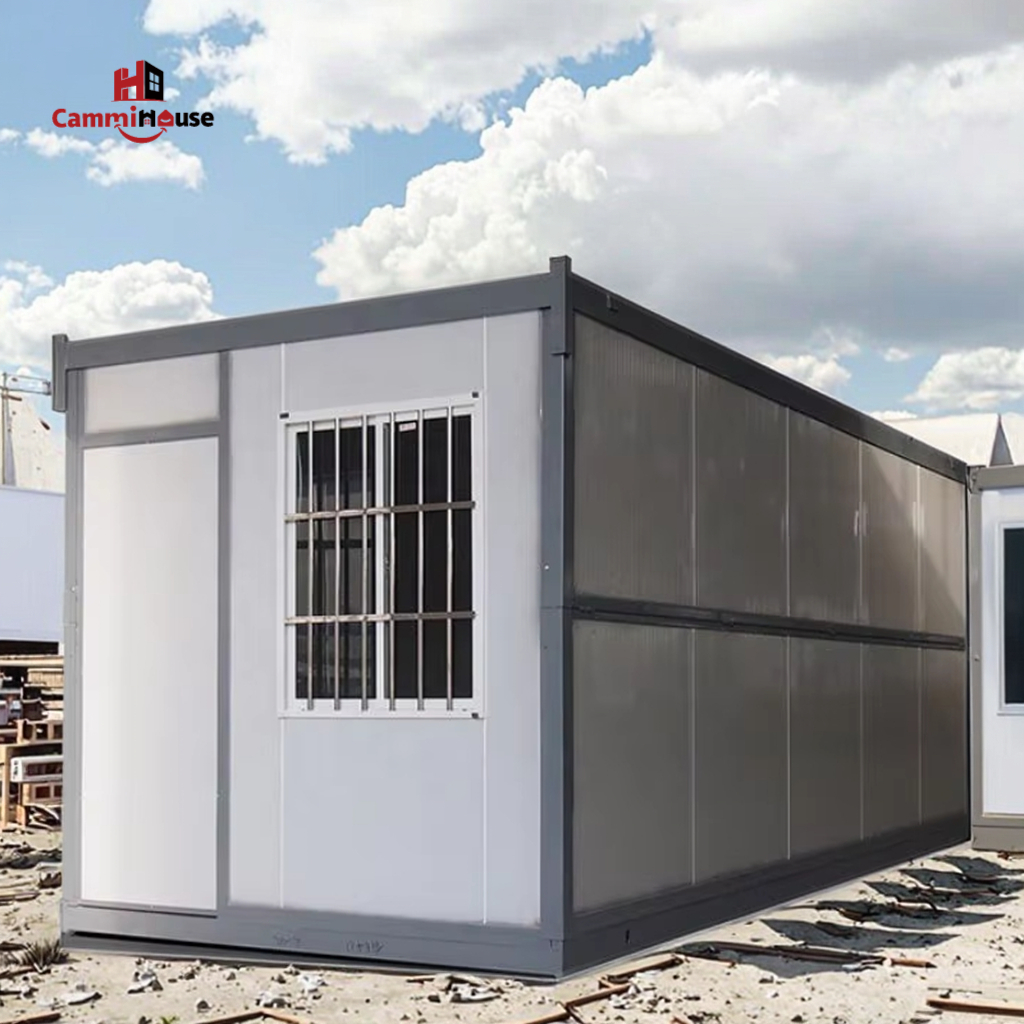

Product Highlights 1. Foldable 20ft Design – Foldable makes it easy to move and curtails shipping budget. 2. Modern Appearance – The new great look works for a wide range of jobs. 3. Strong Steel Structure – Lasts long, is steady, and can stand weather. 4. Fast Installation – The fold system lets you set up fast at your work site.

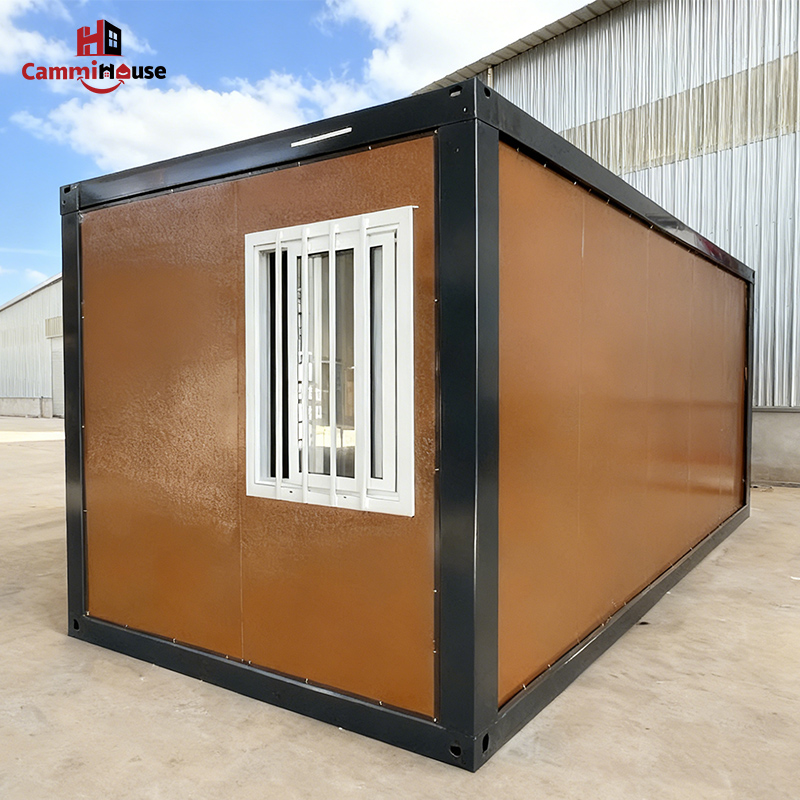

Product Highlights 1. Z-Foldable 20ft Design – Small folds to make it easy to move. 2. Prefabricated System – Parts made in a factory so they are just right. 3. Strong Steel Frame – Stays sturdy, lasts a long time, and works over and over. 4. Quick Installation – Quickly opens and sets up where needed.

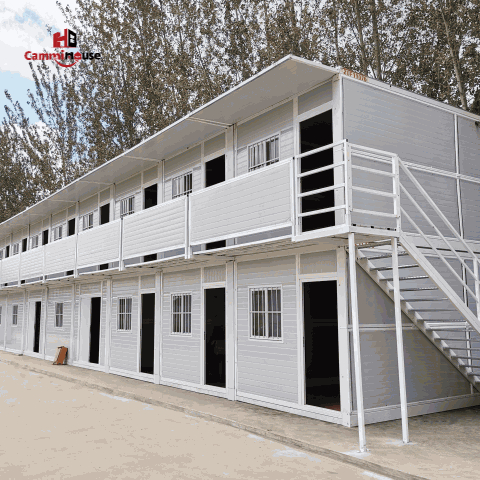

Product Highlights 1. Modular Folding Design – Simple travel, quick start-up, and flexible change of location. 2. Prefab Office Layout – effective working space for on-location or short-term offices. 3. Sturdy Steel Structure – Heavy duty, secure, and designed for everyday use. 4. Time-Saving Installation – Folding method cuts time and work needed for setting up.
