WHAT IS THE FOLDING CONTAINER HOUSE
The X folding container is a very flexible box with fast folding and holding, it has very strong frame and can roll to many different situation quality.
FOLDING CONTAINER HOUSE STRUCTURE
Constructed with rugged and welded galvansed iron and EPS thick layer, it makes easy and safe and usefull Place for even use for time with out problem. Common Size like 20ft Container, 14m2 room, onet 40HQ container Loading, 1 door 2 windows, 12 Huse loaded to each 40HQ container. It even make work easy by 80% and cut Cost Rate.
X Folding Container House
Size: 5800(L)mm * 2480(W)mm * 2560(H)mm
Weight:1400kg
40HQ=10 units
Step 1:Clarify Material Access Standards (Source Control)
Remove the “qualification review + sampling re-inspection” way. There should be a number to check beforehand to see if they got the main parts of the Q355B steel (like if it’s strong enough to take 355N/mm2), eludescence pillow-wads (that don’t let heat go more than 0.042W/(m.K)), and door locks that do not stretch out after every 1000N).
Step 2:Steel Cutting and Blanking
Adopt CNC plasma cutting. Ensure size difference is not above 1mm; that the cutting edge is not more than 0.5mm/m out of a right line and that burrs or missing corners are not present. Make one random check on the cutting edges’ appearance.
Step 3:Frame Welding
Adopt CO₂ gas shielded welding (namely, 120-180A, 20-25V). Make sawn weld height no less than 6mm and weld without bad work. Test end frame sawn weldend frame sawn weldby 100% ultrasonic flaw detect. Rework unqualified welds and test again.
Step 4:Frame Straightening and Forming
Once flattened, be sure that the off-angle is no more than 3mm, the pole straightness is no more than 2mm a meter, and the beam levelness is no more than 1mm a meter. Perform round fix, magnetic liquid check at key parts, and truly do have no cracks or bend.
Step 5:Enclosure System Installation (Core of Thermal Insulation and Waterproofing)
Use 1.8mm mag oxide boards for the floor, weld gap ≤200mm hollow, no hollow Use the splicing gap of EPS thermal insulation boards =2mm External wall color steel plates overlapping ≥100mm slope of the roof ≥5° and 24H water tightness test to prevent leakage.
Step 6:Supporting System Installation (Doors, Windows, Water and Electricity)
Ensure air tightness of doors and windows meets the standard (air leakage ≤ 0.1m3/ ( h·m2) under 0. 5Kpa). Use tempered glasses with ≥ 5mm thickness. Use BV copper core wires and PPR pipes of water and electricity. Put water pressure test at 0.8Mpa for 30min, pressure drop of ≤ 0. 05Mpa. Power on test has 100% pass rate.
Step 7:Factory Acceptance and Filing (Inspection Closure)
Use three checks: you check yourself, others check you, and special checks are done. Stick stickers on good cabins, and take shots for to keep record. Remove and fix bad products. Keep them all for over three years.
Step 8:Delivery Acceptance Coordination
Customers are taken by the quality control staff to acceptance. There is nothing to argue about on the acknowledgement form. A correction scheme is made within 24 hours if there are errors and re-inspection is made after making it accordingtly.
Step 9:Quality Tracking and Feedback
Create unique quality file and make follow-up on the plan: 1-month return visit, 3-month check-up, 1-year maintenance. Deal with customer complaints in 48 hours, fix in 72 hours. Visit site in 24 hours in case of emergency.
Cammi House features a 90,000 sqm manufacturing plant with fully automated production lines. These cover the world's largest container and capsule house manufacturing plants, we apply the newest technologies and ignore complexity in order to create the best items with the best speed. We are proud of our standards of excellence that bring us the strongest and most innovative way to use the latest in sustainable building. |
| ✔ Flexible Delivery Time | ✔ Low MOQ | ✔ Exclusive Regional Rights & Pricing Support |
| Dependable plans for hand-over and storage aid. | Flexible MOQ with mixed product options | Brand Authorization Gives a Lead Over Others in the Market |
| ✔ High Cost-Effectiveness | ✔ Custom Logo | ✔ R&D Resources |
Pricing that competes to win the best deal overall. | Customized stamp for small number of orders | Deliver 3D Dummie Pics and Ground Plans Inside 7 Days |
| ✔ Wide Product Selection | ✔ One-Stop Marketing Package | ✔ 15 Days Fast Delivery |
| Different Choices to Serve All Market Groups | Create Good-Looking Photos & Videos to Push Sales Income | Fastest time to make and send out in 15 days or less. |
Products follow many technical certifiions and tests like CE FCC ETL.IS0 9001. and Eneray Star every year on customer needs so they meet global safety, quality and efficiency standards.
130+
Certifed Patent
Think about giving each technology patents to secure legal shield and a lock on the market.
3000+
Project Cases
Honed through over 3 000 projects, strength has created a quick way to make containers
10%
New R&D Expenses
10% of the making of what we sell is used each year to make what we sell better.
100+
Technical Team
There is assurance of both service and quality with a full technical team.
Commercial Use
Motel& Resort
Mining Camp
Construction Camp
Thank you Cammi to the good way you assisted us in obtaining camp right, on the steel-made factories, furnitures and the camp verses for our pace capsule project in Usa. We couldn't have the best partner than they are now. We're pleased with what did and look forward to work with them in the future.
Cammi always provides all items needed for the Space Capsule Thailand project. We have done three times in a row now. Cammi's friendly and professional team was fantastic! I would recommend Cammi without hesitation when you want to buy high class prefabricated structures.
Cammi was the person who invented, assembled and installed our space pod project in Rheinl and Bay. Our money to do the work was tight but we still got it done on time. The space pod has been in use for about two years now. The anti-corrosion and water draining has proven great for us. We have respect for the class of our container.
Q: What kinds of products can you offer?
A: We have different types of house we sell, such as pre manufactured K house, prefabricated T houses, will, mobile containers, light steel structure buildings, guard etc.
Q: What are your house materials?
A: The main Latin structures are square tube, "c" section Latin, "H" section Latin, grid iron steel. The wall and roof materials are waterprof EPS panel; fireprof frock wol panel; Welinsulated PU panel; Strong concrete panel, These materials can be used for more than 30 years.
Q: Are you the factory or the trading company ?
A: Yes, we are a factory and we are able to give you a competitive price.
Q: Did you have the experience to cooperate with the government?
A: Yes, we have many experiences to work with the government. We have worked with the Maldives Government, India Government, Indonesia Government, East Timor Government, Philippines Government, Pakistan Government and so on.
Q: How is your after-sales service?
A:
1. Any questions, welcome contact us. 24 hours can serve you.
2. One order, one person can follow the whole production.
3. For house installment, we will give you 3D install drawing. If kenn, we can send you enginer to teach your workers, but you must charging back your ticketoo, accommodation, food and salary.
Q: What information should we offer before you quote ?
A: If you have the drawing, please give and tell us the material you use.If you don't have the drawing, please tell us the size of the house. Then we design for you at a good price. Have any question, don't hesitate to contact us !!
Internet-famous Box
Double-opening Z case
Expansion Box
Packing Box
Mesaieed Industrial City 10,000-Man Workers Camp
August 1,2025/ August 20.2025
Cammi ran life support camp for 10,000-capacity plant and liquid/oil storage at Qatalum to work for.
November 18,2025/ November 25.2025
Any ready and cutting Cammi finished the job on 26,000 work men city project.
Mobile Medical Hospital and First AidStations
December 1,2025/ December 3.2025
British residents can enjoy Cammi's health clinics in just 120 minutes as they have been made readily accessible through extensive research and development.

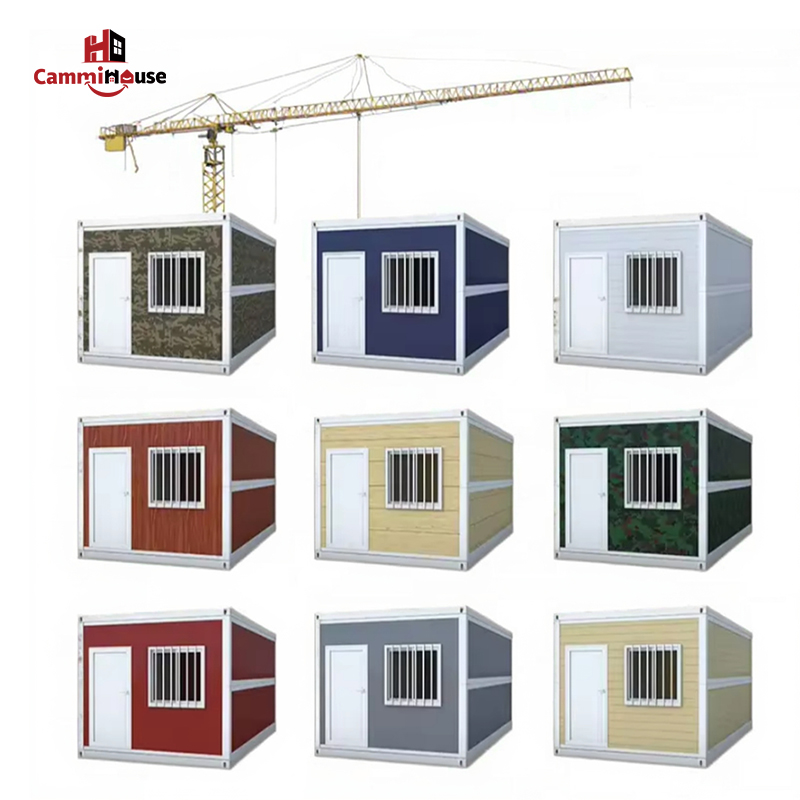

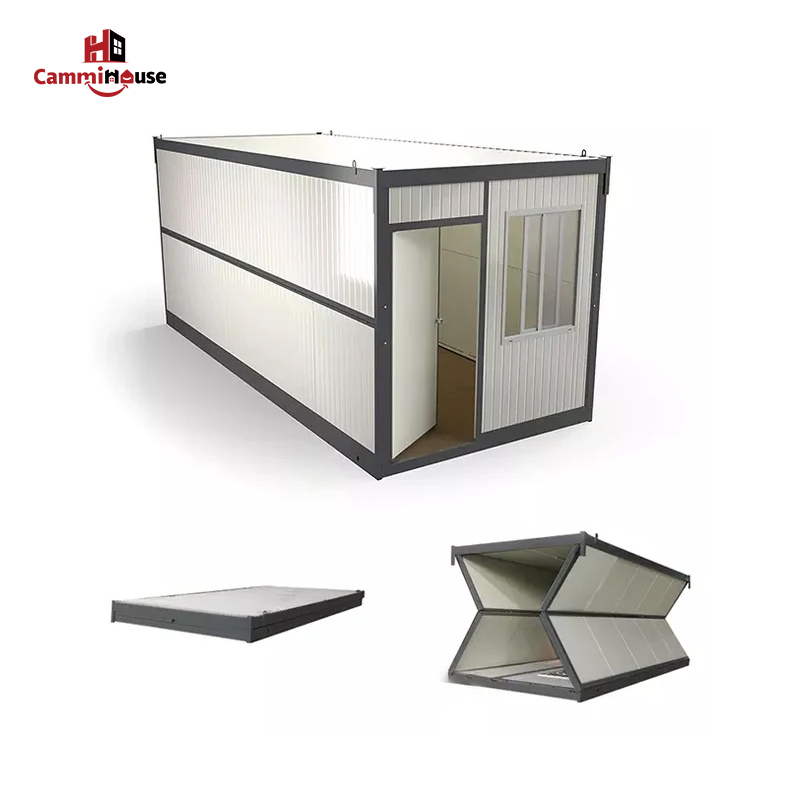

Product Highlights 1. Z-Foldable 20ft Design – Small folds to make it easy to move. 2. Prefabricated System – Parts made in a factory so they are just right. 3. Strong Steel Frame – Stays sturdy, lasts a long time, and works over and over. 4. Quick Installation – Quickly opens and sets up where needed.
Product Highlights 1. Modular Folding Design – Simple travel, quick start-up, and flexible change of location. 2. Prefab Office Layout – effective working space for on-location or short-term offices. 3. Sturdy Steel Structure – Heavy duty, secure, and designed for everyday use. 4. Time-Saving Installation – Folding method cuts time and work needed for setting up.
Product Highlights 1. Latest Prefab Container House - Commercial quality with fresh look. 2. Container Structure on the Go - Lightweight, flexible to different walkways. 3. Container Homes for Sale - Customizable plans, sizes, inside options. 4. Quick Setup - Use of pre-made parts, load on time and cost of power.
