WHAT IS THE FLAT PACK CONTAINER HOUSE
The packing box has a tops and bottom frame made in pieces. Before it leaves the factory, the corners and beams are glued together, and the box can be folded like a piece of the house.

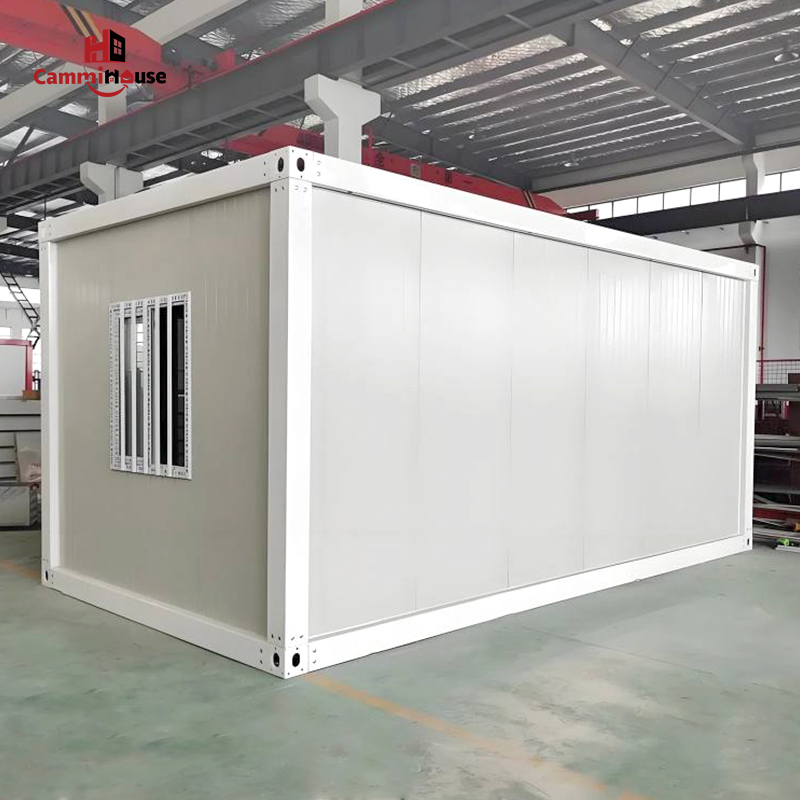

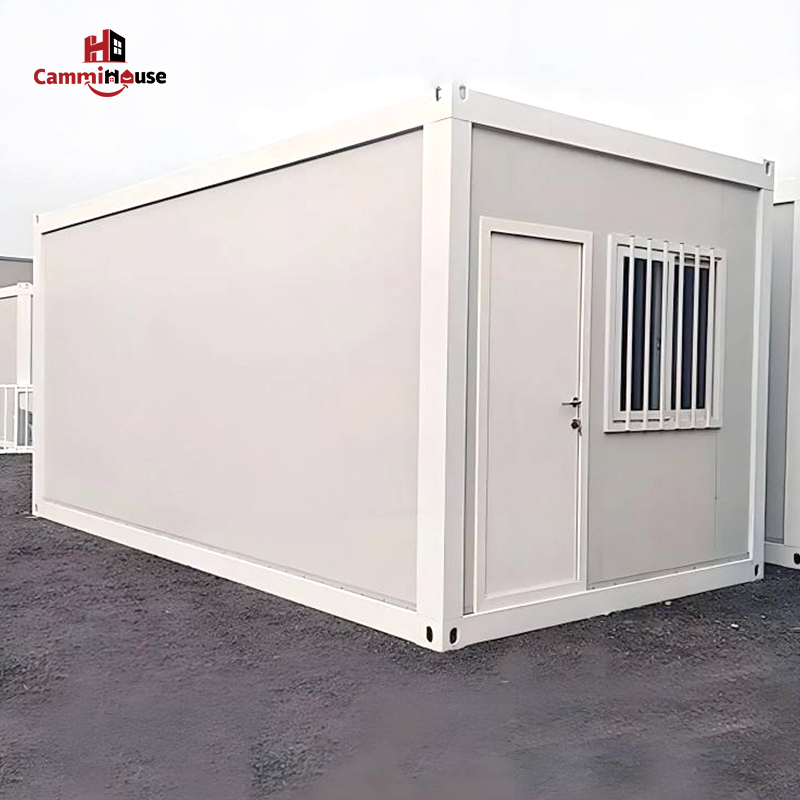

FLAT PACK CONTAINER HOUSE STRUCTURE
Wellcamp flat pack container is 2.435m*5.9m*2.8h with eps/leps/rock wool sandwich panel for wall & glass wool for roof!all steel structure well painted & reliable, the wall &: roof material is insulated. come with complete wall, roof, electrics, plumbing & floor
Flat Pack Container Houer
Installed size: 5900(L)mm*2435(W)mm2896(H)mm
Interior size:5780(L)mm*2225(W)mm*2540(H)mm
40HQ=6 units
Step 1:Make Material Access Standards clear (Source Control)
Create a 'qualification review + sampling re-inspection' system. Establish clear measurements for the main materials, such as Q355B steel (yield strength ≥ 355MPa), EPS thermal insulation (thermal conductivity ≤ 0.042W/(m·K)), and doors’ locks (tensile resistance ≥ 1000N), to keep track of source quality.
Step 2:Steel Cutting and Blanking
Follow CNC plasma cutting. Make sure Dimensional deviation is less than or equal to *.001m, the cutting edge is within 0.5mm/m perpendicularly, and no burrs or missing corners. Do a 100% check on cut edge shape.
Step 3:Weld of Frame
Use CO₂ gas shielded welding (current: 120-180A, voltage: 20-25V). Make sure the weld height ≥ 6mm and have no faults. Check 100% the main frame welds with ultrasonic flaw detection. Re-weld unqualified welds and do re-inspection.
Step 4:Frame Straightening and Forming
After straightening, ensure the following are met: diagonal run-out ≤ 3mm; column perpendicularly ≤ 2mm/m; and beam flatness ≤ 1mm/m. Conduct a 100% inspection and magnetic particle inspection on key parts to avoid cracks or deformation.
Step 5:Enclosure System Installation (Core of Thermal Insulation and Waterproofing)
Use 1.8mm magnesium oxide boards for the floor with weld spacing ≤ 200mm and no hollowing. Make sure the splicing gap of EPS thermal insulation boards ≤ 2mm. The overlap of external wall color steel plates ≥ 100mm, the roof slope ≥ 5°, and do a 24-hour water tightness test to stop leakage.
Step 6:Assistance with System Mounting ( Doors, Windows, Water and Power)
Ensure the doors and windows meet the standard for airtightness (air leakage ≤ 0.1m³/(h·㎡)under 0.5kPa). Use glass with thickness ≥ 5mm. Use BV copper core wires and PPR pipes for water and electric systems. Do water pressure test at 0.8MPa for 30 minutes with pressure drop ≤ 0.05MPa. Power-on pass rate ≥ 100%.
Step 7:Factory Acceptance and Filing (Inspection Closure)
Use three inspections system (the second test, each other's test, and special test). Put the tags on the trained cabins after that take pictures to keep as records. Do not keep un-trained trains together but send back for reworking. Keep all notes for more than 3 years.
Step 8:Coordination of delivery approval
First time around: Quality control staff go with customers for acceptance. If no objection sign the confirmation form. If there is a problem, write a plan to fix it within 24 hours and do the re inspection after fixing it.
Step 9:Quality Tracking and Feedback
Create only good quality files and follow up as per the 'one month return, three months checkup and one year maintain' schedule. Solutions to customer issues should be provided within 48 hours and resolution should be provided within 72 hours. visit should be made within 24 hours even for emergent issues.
Cammi House has a high-quality factory of 90,000 square meters with smart machines for making things. It is the biggest place in the world to make containers and small houses. So we use new tech and smart methods to not only make really good things, but to get them made fast. We always make sure our work is the best, and that it helps us move forward in clean ways that give us new ideas in how we make things with pieces. |
| ✔ Flexible Delivery Time | ✔ Low MOQ | ✔ Exclusive Regional Rights & Pricing Support |
| Kanban schedules and warehousing support depending on need | MoQ flexible with many product choices | Market edge is gained through brand authority |
| ✔ High Cost-Effectiveness | ✔ Custom Logo | ✔ R&D Resources |
Lowest prices to get the best overall deal. | Customized Logo Creation for Small Lots | Give 3D Sample Images and Floor Plans in 7 Days |
| ✔ Wide Product Selection | ✔ One-Stop Marketing Package | ✔ 15 Days Fast Delivery |
| Number of different options to meet all customers needs | Give good Photos, Visuals for Better Selling Amounts | Quickest, we make and send in 15 days. |
Products are subject to multiple technical certifications and tests such as CE FCC ETL.IS0 9001. and Eneray Star every
year according to customer requirements, ensuring compliance with international safety, quality, and efficiency standards.
130+
Certifed Patent
Seek patent cover for all tech aimed at patented succession and market control.
3000+
Project Cases
Hone through more than 3,000 projects strength built a less wasteful way for containers to be kept
10%
New R&D Expenses
Annual spendings on constantly making the items better equal 10% of money gained from sales.
100+
Technical Team
Since there is a complete technical team, quality and service can be assured.
Commercial Use
Motel& Resort
Mining Camp
Construction Camp
Thank you Cammi for us a hand with good camp things like NewMethods steel structures, their furniture and lots of other camp gear for our pace capsule work in the USA. We are glad to say that we are very happy with how much they did to help us. We are ready to work with Cammi once more in the days ahead.
Cammi is the best place for us to buy the Space Capsule Thailand project. We have borrowed hoc two times with them. I am happy with their nice and expert than. I would tell Cammi to get a high one-storey house.
Cammi only made, created, and watched over our space pod project when it was in Rheinl and Bay. We had very little dollars and the project still finished on time. Our space pod still works fine after two years of use. The anti rim drain system is very good. We are by far happiest with the container!
Q: What kinds of products can you offer?
A: We ave lots of houses built by usa, like prefabricated K house, prefabricated T houses, vila, mobile containers, light steel structure buildings and guard.
Q: What are your house materials?
A: Main stel structures: square tube, "c", "H" and angle steel. The roof and wall construction materials are: waterpro EPS panel; fireprof frock wol panel; Welinsulated PU panel; Strong concrete panel. These materials will last for over 30 years.
Q: Are you the factory or the trading company ?
A: Sure. We are factory and we are $nicety to give.
Q: Did you have the experience to cooperate with the government?
A: Sure, we have much expericnce in working with the government. We have worked the the Maldivian Government, the Indian Government, the Indonesian Government, the East Timor Government, the Filipino Government; the Pakistani Governmetand so on.
Q: How is your after-sales service?
A: 1. Any questions welcome to contact us.All time are at your service.
2. One order ,one special man follow the whole producing for you.
3. For the house install, we will send you the 3D install drawing, if you want, we can send an engineer teach your workers but you need to pay him the tickets/uploading, food and salary.
Q: What information should we offer before you quote ?
A: If you have the drawing, plz give us and tell us the stuff you use.If you do not have the drawing, tell us size of the house first.And then we can do for you with good price.Have any question, dont hesitate to contact us !!
Internet-famous Box
Double-opening Z case
Expansion Box
Packing Box
Mesaieed Industrial City 10,000-Man Workers Camp
August 1,2025/ August 20.2025
Cammi did a life support camp to hold 10,000 people; for Qatalum's big back up plant, port and storage areas. (workers and supervisors)
November 18,2025/ November 25.2025
Cammi finished the 26.000 worker's housing project on a turnkey basis.
Mobile Medical Hospital and First AidStations
December 1,2025/ December 3.2025
Cammi brought together mobile area clinics in but the result of seriousR&D work has been able in 2 hrs.
Product Highlights 1. Prefab Tiny House Design – Factory-made regular tiny homes with trusted quality. 2. Standard Flat Pack Structure – Simple to move and inexpensive to ship. 3. Tiny Top Mobile Home Solution – Small and movable living in small space. 4. Fast Installation – Flat pack system shaves time and work.
Product Highlights 1. Custom Prefab Container Homes – Flexible designs tailored to project needs. 2. Flat Pack Container House System – Efficient packing for easy transport and fast setup. 3. Multi-Purpose Flat Pack Containers – Suitable for living, office, or container box hotel projects. 4. Quick Installation – Prefab structure reduces time and labor costs.
Product Highlights 1. Trendy Flat Pack Container Design – Saves space for quick moving and setup. 2. Contemporary Cottage House Feel – Warm look with sleek features. 3. Modular Dwelling Container Homes Structure – Heavy gauge steel to last for many years. 4. Speedy Prefab Erectment – Takes less time and workers to get the job done.
