Setting up a 20ft expandable container house takes as little as 15 minutes with a four-person crew — no heavy construction, no specialist contractors. This guide walks through every phase of the process based on CammiHouse's 10-step installation method, from site preparation to the final lock-down. Whether you are planning a permanent residence, a vacation cabin, or an off-grid retreat, this breakdown gives you a realistic picture of what the work actually involves and how long it takes.
What Is a 20ft Expandable Container House?
A 20ft expandable container house — also called a foldable container home — ships in a compact, folded state and opens on-site into a fully usable living space. Unlike traditional prefab homes that arrive in panels and require assembly from scratch, this modular structure unfolds like a book: walls, roof, and floor connections are all pre-built at the factory. The CammiHouse 20ft model ships folded at 5,900 L x 2,200 W x 2,480 H mm and expands to an installed footprint of 5,900 L x 6,320 W x 2,480 H mm, giving you 38 m² of usable interior space.
Key Dimensions at a Glance
• Folded (shipping) size: 5,900 × 2,200 × 2,480 mm
• Installed (expanded) size: 5,900 × 6,320 × 2,480 mm
• Usable floor area: 38 m²
• Units per 40HQ container: 2
• Typical installation time: 15 minutes (experienced crew) to 1 hour (first-time)
Because two 20ft units fit inside a single 40HQ shipping container, buyers outside China often find freight costs manageable when ordering in pairs — a common approach for vacation rental operators building out multiple units at once.
Before You Start: Site Prep and Tool Checklist
Site Requirements
The ground does not need to be perfectly flat, but it must be level within ±50 mm and capable of bearing the unit's loaded weight. A concrete slab is the most stable foundation option. Compacted gravel and treated timber pad foundations also work for temporary or semi-permanent placements. Before delivery day, confirm that the truck can reach the site and that a forklift or small crane (3-ton capacity minimum) is available to position the folded unit. Clear a working area at least 3 meters wider than the expanded footprint so the installation crew can move safely during the expansion phases.
Team Size and Time Estimate
CammiHouse installation data shows that four workers complete a 20ft foldable container home setup in under one hour under normal conditions. Experienced crews finish the structural work in 15 minutes. First-timers should budget 45 to 60 minutes for the full process, including floor and wall panel checks. No welding, no concrete pouring, and no power tools are required during the expansion itself — all mechanical connections are hand-operated.

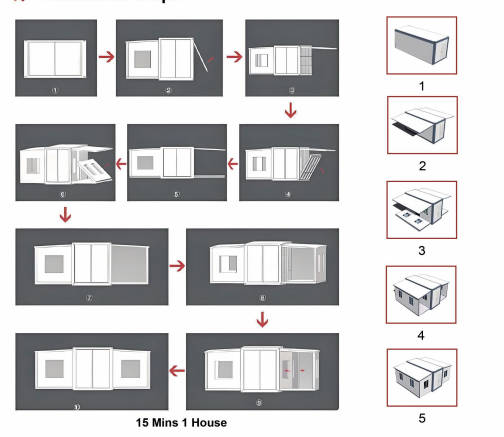

Step-by-Step Installation Guide
The full 10-step process divides into three clear phases: positioning, expanding, and securing. Each phase has defined stopping points so the crew can verify alignment before moving forward.
Phase 1 — Delivery and Positioning (Steps 1–3)
1. Receive the unit on-site in its folded shipping configuration — a compact rectangular box approximately 2.2 m wide.
2. Use a forklift or crane to lift and place the folded house onto the prepared foundation. Align the base frame with your anchor points before releasing the load.
3. Open the roof latches on the expansion side. The roof panel is hinged and swings outward as the first step in the deployment sequence. Confirm all four corner posts are plumb before continuing.
Phase 2 — Expanding the Side Panels (Steps 4–6)
4. Release the folded side-wall section on the expansion side. Two workers push the wall outward while a third guides the floor panel down to ground level.
5. Lock the extended floor panel into the base frame using the built-in mechanical fasteners. Hand-tight pressure is correct at this stage.
6. Swing the outer wall panel to vertical and engage the wall-to-roof connector clips at the top. The structure now reaches its full installed width of 6,320 mm. Check that all panels are flush at every corner.
Phase 3 — Locking Down and Finishing (Steps 7–10)
7. Install the pre-hung door panel on the designated wall section by aligning the frame and tightening four bolts per hinge.
8. Secure all interior wall joints with the provided compression clips. Inspect every ceiling-height seam — gaps wider than 5 mm indicate a panel that is not fully engaged.
9. Connect the pre-wired electrical conduit at the junction boxes if the electrical package is included in your order.
10. Fit window frames and test all locks and latches. The expandable container home is now structurally complete and ready for interior fit-out.
Floor Plan Options for the 20ft Expandable Model
Standard Layouts and Custom Configurations

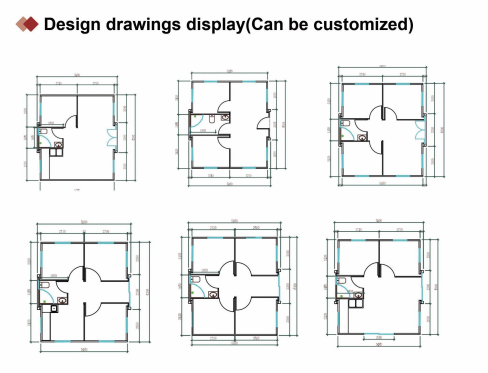

The 20ft expandable model’s 38 m² floor area supports multiple standard configurations within a 36 m² usable zone. Options range from an open-plan studio with one living area and no separate bedroom, to a one-bedroom layout with a private sleeping zone and bathroom, to a two-bedroom plan suitable for small families. CammiHouse also accepts fully custom floor plans: wall positions, window placements, and door swing directions can all be adjusted at the factory stage before the unit ships. Customers building rental parks or eco-resorts typically request two- or three-bedroom configurations with a compact kitchen and combined bathroom.
Custom drawing confirmation takes 3 to 5 business days, and production scheduling begins after drawing approval. The six standard layout drawings shown above are all available without an additional design fee.
Who Uses a 20ft Expandable Container House?
This type of prefab container home fits a wide range of buyers. Remote workers who need a dedicated workspace in their backyard appreciate the fast setup and minimal disruption. Vacation rental operators value the quick deployment and the ability to add units without major building works in many jurisdictions (always verify local rules before ordering). Families in areas affected by housing shortages or natural disasters use foldable container homes as a durable, weatherproof, and relocatable solution. CammiHouse ships to over 30 countries, and the 20ft expandable model is the most frequently ordered size in the product line.
Frequently Asked Questions
Q1: How long does it actually take to set up a 20ft expandable container house?
With four experienced workers, the structural installation is complete in 15 minutes. First-time crews working without prior training typically finish in 45 to 60 minutes. This timeframe covers expanding the panels, locking all mechanical connections, and fitting the pre-hung door. Utility connections such as electrical and plumbing are separate and depend on site conditions.
Q2: Do I need a building permit for an expandable container home?
Permit requirements vary by country, state, and local jurisdiction. In many rural and semi-rural areas, small prefab structures below a certain floor area are exempt from full building permits. CammiHouse provides a technical documentation package to support permit applications wherever they are required. Confirm your local zoning and land-use rules before placing an order, as regulations differ significantly between regions.
Q3: Can I customize the floor plan of a CammiHouse 20ft expandable model?
Yes. CammiHouse offers six standard floor plan options and accepts fully custom layouts. Wall positions, window sizes, door placements, and interior partition configurations can all be modified at the factory before shipment. Custom drawings are confirmed within 3 to 5 business days. Production scheduling begins after the customer approves the final drawing, and no additional design fee applies to standard modifications.
